HOME > SUZUKI >SWIFTSPORT HT81S

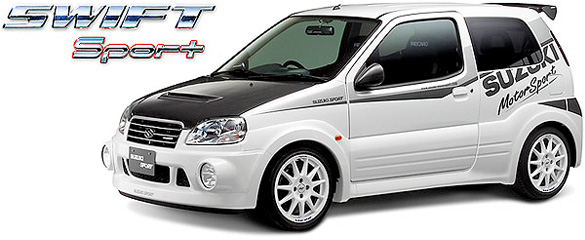

| SWIFT SPORT HT81S |
PARTS NAME |
PART NUMBER |
PRICE JPY |
REMARKS |
| ENGINE |
| M18 ENGINE SHORT BLOCK - NA |
199500-9715M |
CONTACT US |
FOR HT81S M15A ENGINE [1,490cc→1,770cc] |
|
| M18 BORE-UP PISTON KIT - NA |
139500-4350M |
160,000 |
FOR HT81S M15A ENGINE [1,490cc→1,770cc] |
|
| M18 BORE-UP PISTON KIT - SC/TURBO |
139560-4350M |
160,000 |
FOR HT81S M15A ENGINE [1,490cc→1,770cc] |
|
| METAL HEAD GASKET T0.7 |
171107-9720M |
18,000 |
FOR M16/15A ENGINE STANDARD BORE |
|
| METAL HEAD GASKET T1.4 |
171114-9720M |
22,000 |
FOR M16/15A ENGINE STANDARD BORE |
|
| METAL HEAD GASKET T1.05 |
171111-9725M |
23,000 |
FOR M19/18KIT REPLACEMENT |
|
| HIGH FLOW CAMSHAFT |
119500-4650M |
76,000 |
FOR ZC31S AND HT81S |
|
| REINFORCED VALVE SPRING |
124100-4650M |
12,000 |
FOR ZC31S AND HT81S |
|
| OIL PAN BAFFLE PLATE |
164100 - 4650M |
28,000 |
FOR ZC31S AND HT81S |
|
| OIL SENSOR ADAPTER |
8FFB10 |
9,400 |
FOR ZC31S AND HT81S |
|
| OIL FILTER |
68SU |
2,500 |
FOR ZC31S AND HT81S |
|
| SPARK PLUG #7 |
271175-0000 |
1,900 |
FOR ZC31S AND HT81S |
|
| SPARK PLUG #8 |
271185-0000 |
1,900 |
FOR ZC31S AND HT81S |
|
| IGNITION PLUG WIRE |
272500-9700 |
7,800 |
FOR ZC31S AND HT81S |
|
| OIL FILLER CAP, DURACON BLACK |
293110-0000 |
6,500 |
M33X3.5 |
|
| OIL FILLER CAP, BLUE |
293120-0000 |
6,500 |
M33X3.5 |
|
| OIL FILLER CAP, RED |
293130-0000 |
6,500 |
M33X3.5 |
|
| OIL FILLER CAP,CHROME |
293140-0000 |
7,500 |
M33X3.5 |
|
| CARBON LOOK ENGINE PLUG COVER [MONSTER] |
925500-4350M |
9,000 |
FOR M TYPE ENGINE, ZC31S, HT81S,etc |
|
| CARBON LOOK ENGINE PLUG COVER [SUZUKI SPORT] |
925500-4350 |
9,000 |
FOR M TYPE ENGINE, ZC31S, HT82S,etc |
|
| INTAKE |
| AIR FILTER KIT [COMPE-PX] |
213501-4350 |
47,000 |
|
|
| CARBON INTAKE DUCT |
215500-4350 |
29,000 |
NECESSARY: AIR FILTER KIT [213501-4350] |
|
| WET TYPE AIR FILTER [POWER FILTER] |
SA13 |
5,500 |
FOR STANDARD REPLACEMENT |
|
| POWERTRAIN |
| CLUTCH COVER [METAL ＆ NON ASBESTOS] |
319500-4350 |
25,700 |
NECESSARY: SUZUKI SPORT CLUTCH DISK |
|
| CLUTCH DISK [METAL] |
322500-4350 |
26,800 |
NECESSARY: SUZUKI SPORT CLUTCH COVER |
|
| CLUTCH DISK [NON ASBESTOS] |
321500-4350 |
18,200 |
NECESSARY: SUZUKI SPORT CLUTCH COVER |
|
| Gr.N REINFORCED DRIVE SHAFT |
371501-4350 |
180,000 |
L/R SET |
|
| LIMITED SLIP DIFFERENTIAL 1.5WAY |
365500-4350 |
95,000 |
1.5WAY |
|
| FLYWHEEL |
331100-4350 |
45,000 |
WEIGHT:3.6kg SCM435[STANDARD: 5.7kg] |
|
| FLYWHEEL INSTALLATION KIT |
339200-4350 |
2,300 |
FOR ZC31S,HT81S |
|
| SUSPENSION |
| RACING HEIGHT ADJUSTABLE SUSPENSION [Fr&Rr ADJUSTABLE] |
564530-4350 |
145,000 |
RUBBER UPPER, Front14.0K Rear 8.0K, SHORT STROKE |
|
| MOUNT&BUSH |
| SUSPENSION BUSH SET,14PCS |
640500-4650 |
17,000 |
[Fr]STABILIZER BUSH 6 pcs, LOWER SUSPENSION ARM BUSH 2pcs,[Rr] TRAILING ARM BUSH 6pcs |
|
| STABILIZER BUSH SET, 6pcs |
643500-4022 |
5,000 |
BODY SIDE 2pcs, ARM SIDE 4pcs |
|
| COOLING |
| HIGH PRESSURE RADIATOR CAP |
4ZE36-C20 |
2,800 |
1.3BAR |
|
| LOW TEMPERATURE THERMOSTAT |
263352-9880 |
6,500 |
|
|
| EXTERIOR |
| CARBON FRONT HOOD |
8EQB10 |
96,000 |
MANUFACTURING LEAD TIME 3WEEKS |
|
| CARBON FRONT HOOD, CLEAR COAT FINISH |
8EQB10C |
136,000 |
MANUFACTURING LEAD TIME 6WEEKS |
|
| CARBON REAR WING |
8EQW10 |
94,000 |
MANUFACTURING LEAD TIME 3WEEKS,
NO NEED ADDITIONAL HOLES |
|
| CARBON REAR WING, CLEAR COAT FINISH |
8EQW10C |
134,000 |
MANUFACTURING LEAD TIME 6WEEKS,
NO NEED ADDITIONAL HOLES |
|
| NUMBER PLATE BOLT [2PCS SET] |
763510-0000 |
2,600 |
M16/1.0 L15 |
|
| FLAT BLADE WIPER |
764148-0000 |
3,600 |
FOR RHD, 48CM DRIVER SIDE |
|
| FLAT BLADE WIPER |
764145-0000 |
3,600 |
FOR RHD, 45CM CO-DRIVER SIDE |
|
| WHEEL ACCESSORY |
| WHEEL NUT [BLUE] |
689130-0000 |
500 |
1pc=500JPY, M12/1.25, L28 |
|
| WHEEL NUT [GUN METAL] |
689150-0000 |
500 |
1pc=500JPY, M12/1.25, L28 |
|
| WHEEL NUT [RED] |
689170-0000 |
500 |
1pc=500JPY, M12/1.25, L28 |
|
| HEPTAGON WHEEL NUT SET [16pcs] |
684516-0000 |
10,000 |
ATTACHMENT: HEPTAGON TOOL |
|
| AIR VALVE CAP SET |
680500-0000 |
2,400 |
4pcs |
|
| BRAKE |
| STAINLESS MESH BRAKE LINE |
470561-4350M |
19,000 |
COLOR: RED |
|
| FRONT BRAKE PAD SET[TYPE-RX] |
4VL36-A21M |
23,000 |
COLOR: RED, SEMIMETAL FOR CIRCUIT |
|
| FRONT BRAKE PAD SET[TYPE-E] |
411120-3000M |
9,500 |
COLOR: RED, FOR STREET-SPORT |
|
| REAR BRAKE PAD SET[TYPE-RX] |
412500-4350 |
21,000 |
COLOR: RED, SEMIMETAL FOR CIRCUIT |
|
| REAR BRAKE PAD SET[TYPE-E] |
412120-4350M |
9,500 |
COLOR: RED, FOR STREET-SPORT |
|
| INTERIOR |
| SPORT CLUTCH PEDAL ＆ FOOTREST SET |
845500-4350 |
19,000 |
FOR RHD |
|
| SHORT SHIFT KIT |
391500-4350 |
33,000 |
FOR MT,[DURACON] |
|
| SHIFT KNOB [BALL TYPE, BLACK] |
831130-0000 |
4,700 |
FOR MT,[DURACON] |
|
| SHIFT KNOB [BALL TYPE, WHITE] |
831135-0000 |
4,700 |
FOR MT,[DURACON] |
|
| SHIFT KNOB [STICK TYPE, BLACK] |
831140-0000 |
4,700 |
FOR MT,[DURACON] |
|
| SHIFT KNOB [STICK TYPE, WHITE] |
831145-0000 |
4,700 |
FOR MT,[DURACON] |
|
| WR SHIFT KNOB [WHITE] |
831120-0000 |
4,700 |
FOR MT,[DURACON] |
|
| CARBON PILLAR METER HOOD [Dia52mm] |
851520-4350 |
16,000 |
Dia52mm, FOR RHD |
|
| CARBON METER PANEL |
852500-4350 |
7,800 |
|
|
| ELECTRONIC & METER/GAUGE |
| CRACTION SET |
762500-0000 |
3,900 |
HIGH ＆LOW, 250K |
|
| CRACTION INSTALLATION HARNESS KIT |
762121-0000 |
2,000 |
|
|
| IGNITION PLUG WIRE |
272500-9700 |
7,800 |
FOR ZC31S AND HT81S |
|
| WATER TEMPERATURE METER [WHITE] |
882551-0000 |
17,000 |
Dia 52mm |
|
| WATER TEMPERATURE METER [BLACK] |
882552-0000 |
17,000 |
Dia 52mm |
|
| OIL TEMPERATURE METER [WHITE] |
885551-0000 |
17,000 |
Dia 52mm |
|
| OIL TEMPERATURE METER [BLACK] |
885552-0000 |
17,000 |
Dia 52mm |
|
| OIL PRESSURE METER [WHITE] |
884551-0000 |
24,000 |
Dia 52mm |
|
| OIL PRESSURE METER [BLACK] |
884552-0000 |
24,000 |
Dia 52mm |
|
| NA GAUGE [BLACK] |
883562-0000 |
21,000 |
Dia 60mm |
|
| BOOST METER [WHITE] |
881561-0000 |
21,000 |
Dia 60mm |
|
| BOOST METER [BLACK] |
881562-0000 |
21,000 |
Dia 60mm |
|
| CARBON PILLAR METER HOOD [Dia52mm] |
851520-4350 |
16,000 |
Dia52mm, FOR RHD |
|
| CARBON METER PANEL |
852500-4350 |
7,800 |
|
|
| MASTER UNIT |
888500-0000 |
9,800 |
|
|
| WATER TEMPERATURE SENSOR ADAPTER |
882126-0000M |
3,500 |
FOR Dia25-28mm |
|
| OIL SENSOR ADAPTER |
8FFB10 |
9,400 |
FOR ZC31S AND HT81S |
|
| FRP LAMP POD |
795500-4350 |
28,000 |
WHITE GEL COAT [NECESSARY: FOG LAMP SET] |
|
| FRP LAMP POD with IPF LIGHT KIT |
795500-4350_S-9682 |
40,000 |
IPF Part Number: S-9682 |
|
■CAUTION
*Application and model year which is shown on this list is based on Japan domestic market model. There maybe a possibility of not able to be fitted on to overseas market models.
*Since our product was developed for competition use, unless the product was different from the order or the condition of the product is not in good shape, we can not accept any claims on order to replace or pay back for the purchased merchandise. Also, in order to fit the parts, the manufacturer/dealer warrantee will may become invalid. Please contact your local dealer for further information.
*Becareful of fitting parts as it may violate the regulation of using them on public roads on each different country.
*Additional cost will be added to the product price. (Packaging, handling charge, custome clearance charge, etc.)
*The parts specification and price may vary without prior notification.
*Basically we do not have guarantee or do not accept claims since all the products are motorsport parts.
*Product prices are indicated in Japanese Yen. |
|
|
